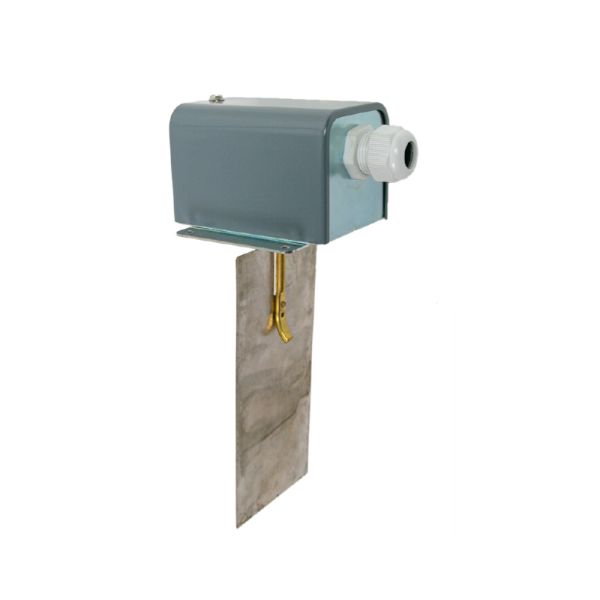

Air Flow Switch (FSPA)

The Liquid Paddle Switch is designed to provide a switched output to prove flow or no flow within water pipes from 1” to 6”, and can provide a cost effective solution where pressure cannot be accurately used to monitor flow.

Overview

The Liquid Paddle Switch is designed to provide a switched output to prove flow or no flow within water pipes from 1” to 6”, and can provide a cost effective solution where pressure cannot be accurately used to monitor flow.

Technical Specifications

VFC Output:SPDT 0.25A @ 250V Max
Flow Rate:
Duct Size: Switch ON: Switch OFF:
Horizontal (<323cm2) 1.8m/s 1.8m/s
Horizontal (≥323cm2) 2.5m/s 1.3m/s
Vertical (<323cm2) 1.8m/s 1.8m/s
Vertical (≥323cm2) 2.5m/s 1.3m/s
Paddle Material:Stainless Steel (304)
Media Temp:-20 ~ 80°C
Operating Temp:-15 ~ 50°C
Connection / Connectivity:1” BSPT
IP Rating:IP54
Approval:CE

Part Numbers & Options / Accessories

PART NODESCRIPTION
FSPAFlow Switch (Paddle) - Air
