Remote Display
Categories: Products , Miscellaneous , Plant Room Gas Safety , Specialist Gas Detection , Miscellaneous , Plant Room Gas Safety , Specialist Gas Detection

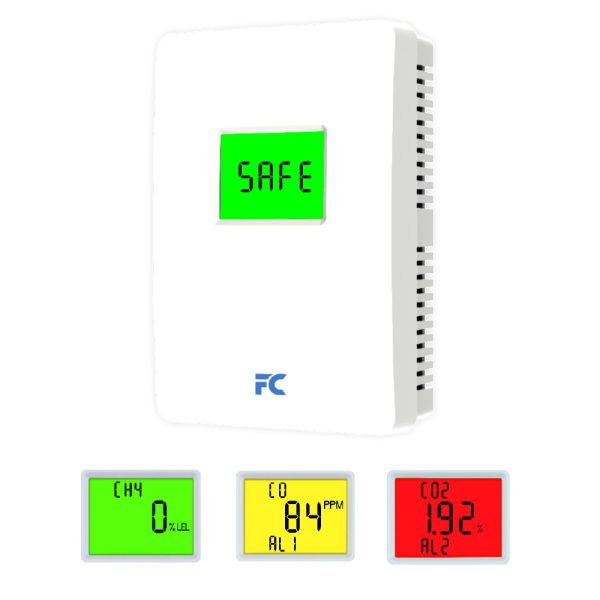

The GasMonitor Remote Display provides an clear, simple visual indication of the panel and connected sensor status for additional entrances and exits to the monitored areas.
Overview
The GasMonitor Remote Display provides an clear, simple visual indication of the panel and connected sensor status for additional entrances and exits to the monitored areas.
A traffic light LCD will advise if any of the connected sensors enter alarm and the display can either scroll through the concentration of all sensor types connected or simply display the status.
Dimensions
| Height: | 125 mm (Standard), 152 mm (IP Rated) |
|---|---|
| Width: | 86 mm (Standard), 110 mm (IP Rated) |
| Depth: | 36 mm (Standard), 50 mm (IP Rated) |
Technical Specifications
| Power Supply: | 24V AC/DC ± 10% |
|---|---|
| Power Consumption: | 40mA Max |
| VFC Output: | SPDT - 1A @ 24V Max |
| IP Rating: | IP40 / IP66 |
| Approval: | CE, UKCA |
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| GM-RD | GasMonitor Remote Display |
| GM-RD-IP66 | GasMonitor Remote Display (IP66) |
Data Sheets
General specifications in .pdf format
