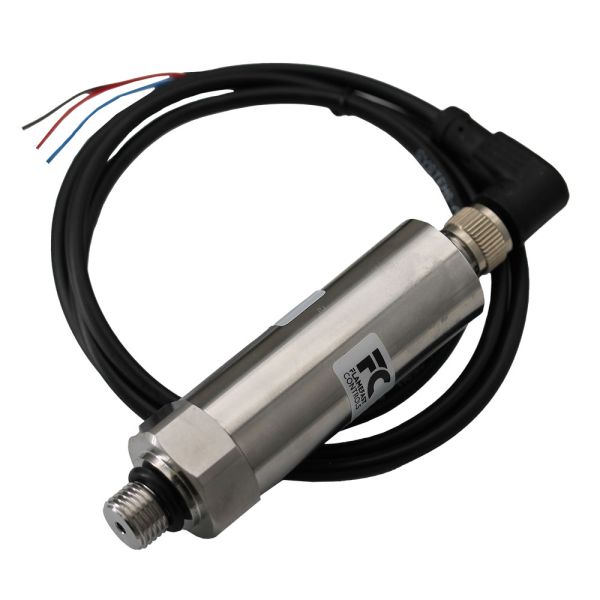

Pressure Transmitter (PTV)

Categories: Products , Pressure, Level & Flow , Products , Pressure, Level & Flow

The Flamefast 0-10V Pressure Transmitter (PTV) is a compact and robust unit for monitoring a wide range of gaseous and liquid media. The full 316L Stainless Steel housing and wetted parts provide excellent media compatibility.

Enquire

Overview

The Flamefast 0-10V Pressure Transmitter (PTV) is a compact and robust unit for monitoring a wide range of gaseous and liquid media. The full 316L Stainless Steel housing and wetted parts provide excellent media compatibility.

The vented pressure sensor housing removes any concerns associated with vented cables becoming creased, and the M12 connection allows it to be easily fitted without the cable fitted.

Technical Specifications

Power Supply:24V AC/DC ±10%
Power Consumption:50mA @ 24V Max
Analogue Outputs:0-10V
Pressure Type:Static
Sensor Type:Piezo-resistive
Overload Pressure:2x Full Scale
Temp Range:-30 ~ 80°C (media temp range)
Accuracy:<±0.50% FS
Repeatability:<±0.02% FS / Year
Thermal Coefficient:<±0.02% FS / °C
Process Connections:G1/4 Male (BSPP)
Wetted Parts:Stainless Steel (316L)
Body Material:Stainless Steel (316L)
Seal Material:EPDM
IP Rating:IP65
Approval:CE

NEED THE REQUIREMENTS?

minReq-Kitchen

Commercial
Kitchens

GO TO
arrow-kitchen
minReq-lab

Teaching
Areas

GO TO
arrow-lab
minReq-plant

Plant
Rooms

GO TO
arrow-plant
Bacnet_Products_1
Find out more

Part Numbers & Options / Accessories

PART NODESCRIPTION
PT02V-ASSYPressure Transmitter - 2 Bar (0-10V) c/w 1m Cable Assembly
PT10V-ASSYPressure Transmitter - 10 Bar (0-10V) c/w 1m Cable Assembly
PT40V-ASSYPressure Transmitter - 40 Bar (0-10V) c/w 1m Cable Assembly
