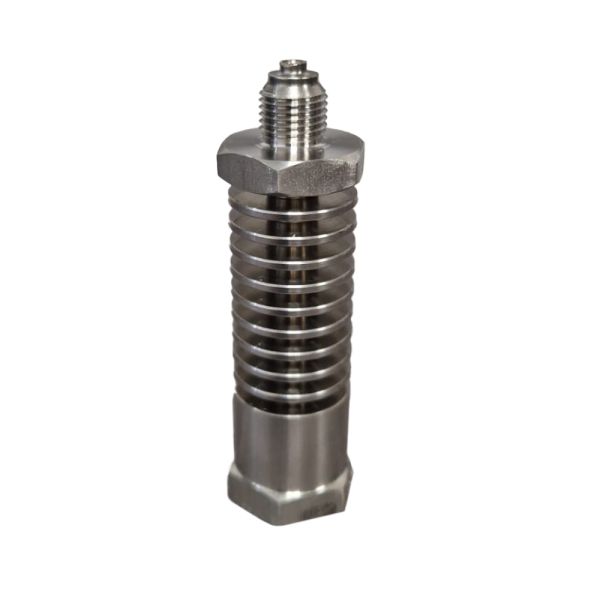

Pressure Transmitter - Heat Sink (PT-HS)
The Pressure Transmitter Heat Sink provides a robust, lowcost solution for line cooling where the media temperature exceeds the transmitter rating, without the need of copper coils that can be easily damaged, and with a full 316L Stainless Steel body, material compatibility is not an issue.
Overview
The Pressure Transmitter Heat Sink provides a robust, lowcost solution for line cooling where the media temperature exceeds the transmitter rating, without the need of copper coils that can be easily damaged, and with a full 316L Stainless Steel body, material compatibility is not an issue.
Technical Specifications
| Power Supply: | 12-32V DC |
|---|---|
| Process Connections: | A: G1/4” Male (BSPP) B: G1/4” Female (BSPP) |
| Wetted Parts: | Stainless Steel (316L) |
| Body Length: | 108 mm |
| Max Pressure: | 400 Bar |
| Max Temp: | 250°C |
| Typ. Temp Dissipation: | 50°C in Ambient |
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| PT-HS | Pressure Transmitter Heat Sink |
Data Sheets
General specifications in .pdf format
