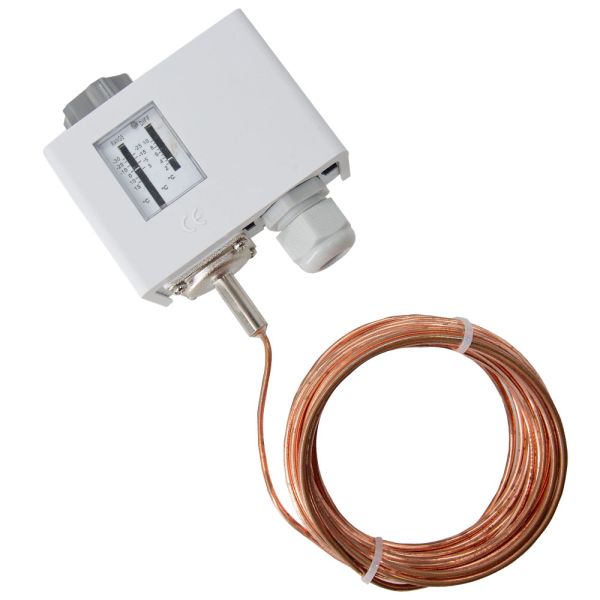

Thermostat - Capillary (ST-CAP)
The Flamefast Capillary Thermostat is ideal for frost protection on heating systems and air handling units, with an adjustable range and switching differential for additional control.
Overview
The Flamefast Capillary Thermostat is ideal for frost protection on heating systems and air handling units, with an adjustable range and switching differential for additional control.
Dimensions
Technical Specifications
| VFC Output: | SPDT – 12A @ 250VAC Max | ||||
|---|---|---|---|---|---|
| Temp Range: | -30 ~ 15°C | ||||
| Operation Conditions: |
| ||||
| Cable Length: | 6m (copper) - Capillary Length | ||||
| Switch Differential: | 2 ~ 10°C | ||||
| Max Temp: | -40 ~ 120°C | ||||
| IP Rating: | IP30 | ||||
| Approval: | CE |
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| ST-CAP6A | Thermostat - Capillary - 6m, Auto-reset (-30~15°C) |
Data Sheets
General specifications in .pdf format
