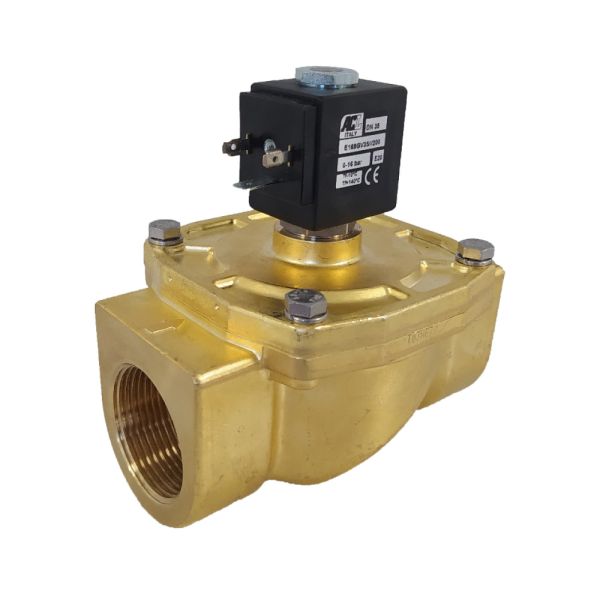

General Purpose Solenoid Valve (OV)
This general purpose solenoid valve is suitable for a wide range of media including Air, Water, and Light Oils (up to 25 centistokes). Due to the direct acting lift mechanism this valve can operate with a zero pressure differential.
When used with a Flamefast BoilerGuard this can be used to provide a complete and cost effective safety system for isolating fuel oil supplies to plant.
Overview
This general purpose solenoid valve is suitable for a wide range of media including Air, Water, and Light Oils (up to 25 centistokes). Due to the direct acting lift mechanism this valve can operate with a zero pressure differential.
When used with a Flamefast BoilerGuard this can be used to provide a complete and cost effective safety system for isolating fuel oil supplies to plant.
Technical Specifications
| Power Supply: | 230VAC 50Hz |
|---|---|
| Power Consumption: | 25W |
| Pressure Range: | 15Bar (<=1") / 5Bar (>1") |
| Body Material: | Brass |
| Internal Material: | Brass & Stainless Steel |
| Seal Material: | Nitrile |
| Media Temp: | -10°C ~ 80°C |
| Connection: | BSP |
| IP Rating: | IP65 |
| Approval: | CE, UKCA |
Additional Information
| PART NO | SIZE | ORIFICE | FLOW FACTOR cV | OPERATING PRESSURE DIFF | NOMINAL POWER | OVERALL DIMENSIONS (ex CABLE) | ||||||
| MIN | MAX | AC | DC | a | b | c | d | Weight | ||||
| (NPT) | (mm) | (gpm) | (Bar) | (Bar) | Inrush (W) | (W) | (mm) | (mm) | (mm) | (mm) | (Kg) | |
| OV15 | ½ | 16 | 2.77 | 0 | 14 | 10 | 27 | 70 | 84 | 20 | 50 | 0.76 |
| OV20 | ¾ | 20 | 8.32 | 0 | 16 | 10 | 27 | 104 | 84 | 24 | 65 | 0.76 |
| OV25 | 1 | 25 | 9.71 | 0 | 16 | 10 | 27 | 104 | 87 | 35 | 65 | 1.00 |
| OV32 | 1¼ | 35 | 18.7 | 0 | 16 | 10 | 27 | 128 | 100 | 32 | 94 | 2.55 |
| OV40 | 1½ | 40 | 19.4 | 0 | 16 | 10 | 27 | 128 | 100 | 32 | 94 | 2.43 |
Part Numbers & Options / Accessories
| PART NO | DESCRIPTION |
| OV15 | ½" General Purpose Solenoid Valve (230V ) |
| OV20 | ¾" General Purpose Solenoid Valve (230V ) |
| OV25 | 1" General Purpose Solenoid Valve (230V ) |
| OV32 | 1¼" General Purpose Solenoid Valve (230V ) |
| OV40 | 1½" General Purpose Solenoid Valve (230V ) |
| OV50 | 2" General Purpose Solenoid Valve (230V ) |
| OV15-24A | ½" General Purpose Solenoid Valve (24V AC) |
| OV20-24A | ¾" General Purpose Solenoid Valve (24V AC) |
| OV25-24A | 1" General Purpose Solenoid Valve (24V AC) |
| OV32-24A | 1¼" General Purpose Solenoid Valve (24V AC) |
| OV40-24A | 1½" General Purpose Solenoid Valve (24V AC) |
| OV50-24A | 2" General Purpose Solenoid Valve (24V AC) |
| OV15-24D | ½" General Purpose Solenoid Valve (24V DC) |
| OV20-24D | ¾" General Purpose Solenoid Valve (24V DC) |
| OV25-24D | 1" General Purpose Solenoid Valve (24V DC) |
| OV32-24D | 1¼" General Purpose Solenoid Valve (24V DC) |
| OV40-24D | 1½" General Purpose Solenoid Valve (24V DC) |
| OV50-24D | 2" General Purpose Solenoid Valve (24V DC) |
LARGER SIZES AVAILABLE ON REQUEST
Data Sheets
General specifications in .pdf format
-
